Chapter V

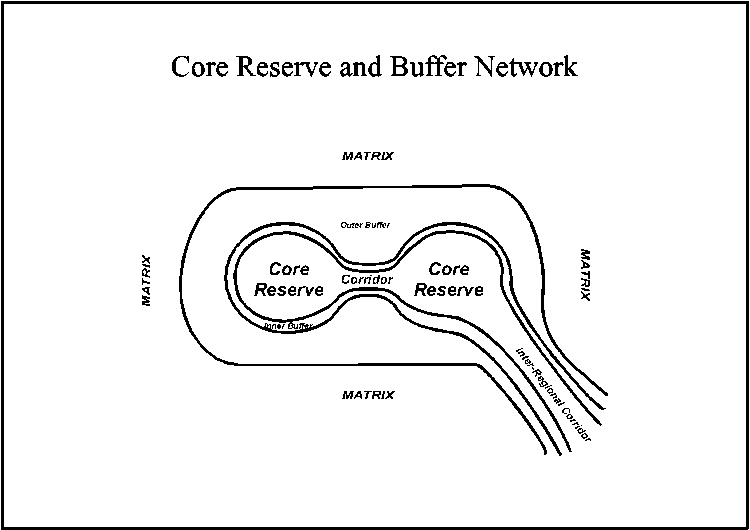

    Maintaining biodiversity of species in nature reserves and natural areas is critical for the proper functioning of  ecosystems.   Land acquistions supplement habitat areas and allow greater species movement and  succession.  A GIS can be a valuable tool for modeling the matrix of land use and land cover surrounding core reserves.
     Using Quail Hollow State Park of Ohio as a study site, the thesis developed methods for assisting park management in nature reserve design.  First, the integration of data from various sources in different formats resulted in  a comprehensive GIS database to support the management of the park's land base. Secondly, a set of GIS analytic  procedures were  used for evaluating the current land use patterns and ownerships for possible expansion of the park.
     The integration of various data may not have much theoretical progress in  information technology but it is of great practical value to park managers as a prototype model. Evaluating land use patterns and changing processes requires the application of GIS overlay functions. The results are the effort of applying geographic information system technology to solve everyday practical problems.

5.1  Data Layers Description

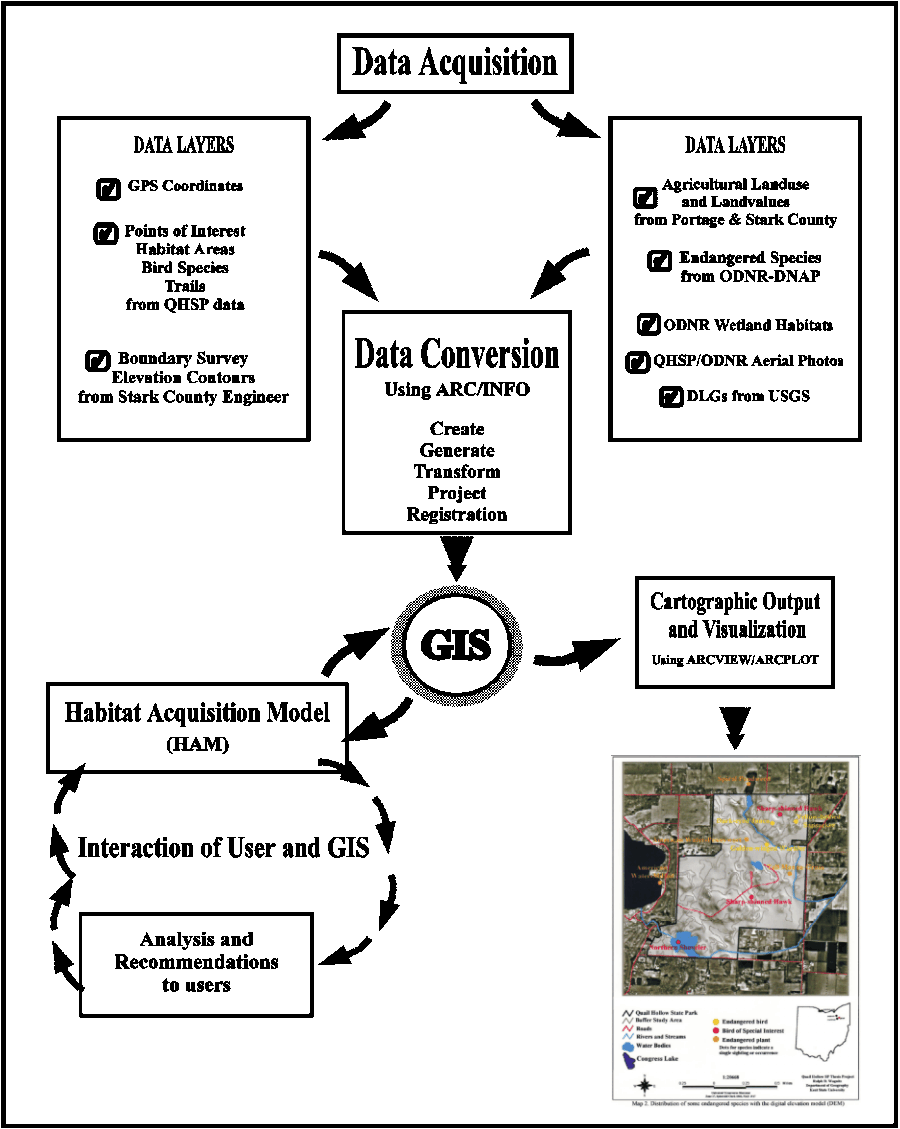

     A GIS  database of the park area and surrounding landscape was created by digitizing data from maps and acquiring secondary data in various formats from government agencies. Data layers that were digitized include:
1.  park boundary  (used as the base layer) - from Stark County Engineering Department map
2.  points of  interest - from QHSP map
3.  trails - from QHSP map
     Secondary  data  were obtained from the ODNR, USGS and Stark and Portage  county governments.  The secondary data layers include:
1. Agricultural Land Use and Land Values - from Stark and Portage County government
 Types of agricultural landuse can be identified as areas for animal movement or forage.  These areas may provide natural corridors for animal migration which benefits biological diversity.  The cost of  land under consideration must be within  proposed or established budgets.  Land values often fluctuate and are difficult to determine.
2. Aerial Photography - from ODNR and Quail Hollow State Park
 Aerial photography  (remotely sensed imagery) was used in land use analysis in a variety of ways.  Boundaries of vegetation and habitats were identified and digitized from imagery.  Spatial perspective and location were thus established.  There are many  problems in converting and rectifying aerial photography for use in a GIS.  The solutions to these problems are discussed in Section 5.6.2.
3. Wetland Classifications - from ODNR, Wildlife Division
 QHSP consists of a majority of wetland habitat types.  Parcels near the park with similar types of habitat would provide increased habitat for species preservation and biodiversity. Parcels acquired in direct proximity to the park would also serve as a buffer to the ‘exposed' edges (ecotonal) on the park boundary.  Areas not in direct proximity might be eventually ‘connected' to the park system via habitat corridors.  Wetlands that are compatible with  park habitats can be identified using  GIS overlay functions of buffering, intersecting and other spatial overlay techniques.
4.  Natural Heritage Data - from ODNR, Division of  Natural Areas and Preserves (DNAP)
 The Natural Heritage data includes latitude and longitude coordinates of locations of state-listed endangered plant species.  These data were overlayed on wetland habitats from ODNR to identify habitats within QHSP that correspond with habitats in the buffer study area (BSA).
5.  Digital line graphs (DLGs) - from the USGS
 DLG data were used for transportation and hydrography information in the park and BSA.  The DLGs were converted from USGS 250,000 map series digital data 6. Digital elevation model (DEM) - created by digitizing the two-foot contours from Stark County Engineer elevation data
      The topography of the park and study area  is shaded on  a digital  surface constructed from contour elevations.  Animal and plant locations  overlayed on the DEM can identify physiographic features preferred by some species.  The DEM data from USGS could not be used for the BSA due to errors in the data and their low resolution.
 SPECIAL NOTE: Throughout the chapters on  methodology I refer to  many different command structures and parameters used for processing and conversion of digital data and coverages.  Unless otherwise noted the commands pertain  to  ARC/INFO (ESRI 1996) GIS software modules.  These commands will be capitalized and in brackets, e.g. [BUFFER]. For further information on software mentioned in this study see Appendix C.

5.2  GPS Ground Control Coordinates
     Perhaps the most critical part of an integrated GIS database is the proper registration of data layers.  For layers in the GIS database to ‘fit'together there must be a source of accurate and precise geographically referenced coordinates to be used as the ground control points.  In ARC/INFO control points are generally referred to as "TIC" points.  For this thesis a Global Positioning System (GPS) was used to obtain ‘ground-truthed' control positions in the field (Morain and Budge 1996).

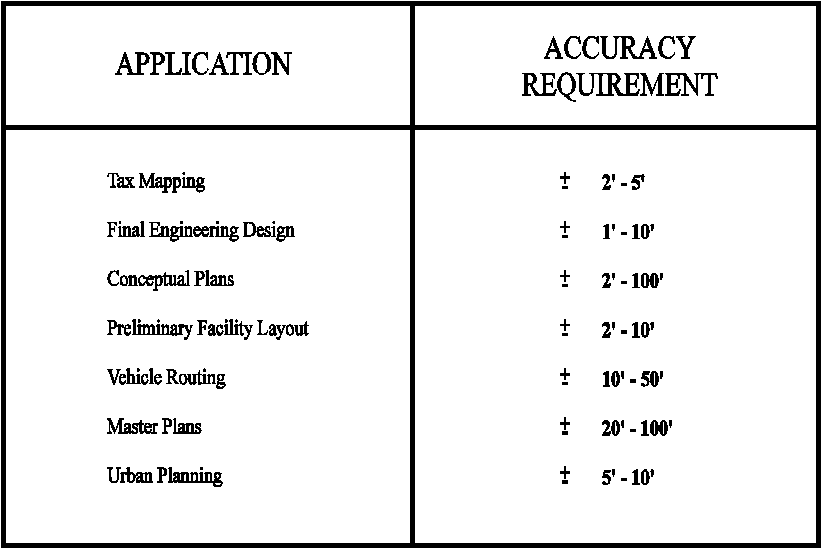

 The degree of positional accuracy is often determined by the intended use of a GIS (Montgomery and Schuch 1993).  Accuracy requirements can be generalized based on the application  (Table 1).  The GPS unit used was a Garmin GPS 45 hand held unit which has a claimed accuracy of +-10 meters (Garmin International 1994).  The Quail Hollow State Park project is considered under the heading Conceptual  Plan.  Positional accuracy in the study was maintained within 10 meters (+- 32.8 feet) using the Garmin GPS unit.
      Four control points were selected for registering the data layers.  In ARC/INFO the minimum number of  points (TICS) needed to register a coverage is four.  The points were chosen because three (points 1,7 and 11) are intersections of roads.  Point 2 is the intersection of the park boundary at a road (Pontius Street).  Alternate locations for control points would be a tree or building.  However, these types of locations could be destroyed thus making location data useless. The four points chosen were  considered reliable positions in that they were likely to remain permanent and that they were easily identifiable on the aerial photograph and other maps such as land ownership parcels and the park survey.
     The coordinates received from the Garmin GPS unit were in degree-minutes-seconds (DMS) format.  The DMS coordinates were converted into degree decimal (DD) format using a Hewlett-Packard (model 42S) handheld scientific calculator.

5.3  Digitizing and Registration of  Data
     The data layers of the QHSP boundary,  points of  interest, trails, and elevation contours were created by digitizing features from paper maps.  The elevation contours were digitized from the Stark County Engineering Department map of elevation contours with two-foot intervals.  Information on the digitizing techniques for the elevation contours is  covered in the digital elevation model (DEM) discussion in section  5.5.
     The points of interest and trails data were digitized from maps supplied by QHSP management.  Digitizing is a very time-consuming procedure.  Data sources, i.e. maps, were prepared by highlighting areas or points on the maps, such as coordinates for TIC locations.  In ARC/INFO, TICS  are "geographic control points representing known locations on the earth's surface", (ESRI 1995).  These control points allow different data layers to be registered to a common coordinate system, such as the Universal Transverse Mercator (UTM).  In this thesis all data layers were registered to the UTM coordinate system with meters as the data unit.
     Once TIC locations were established, the map was taped to a digitizing table or tablet  with an electronic ‘grid' built into the table.  A keypad,  with a number of buttons for different operations, was used to enter x,y coordinate information.  A point coordinate is entered with just a single click on the keypad.  Lines are formed by entering numerous points to define the shape of the line.  Polygons are created by digitizing lines to define the boundary of the polygon.  The arc digitizing system (ADS) of ARC/INFO was used for digitizing with digitizing units in inches.

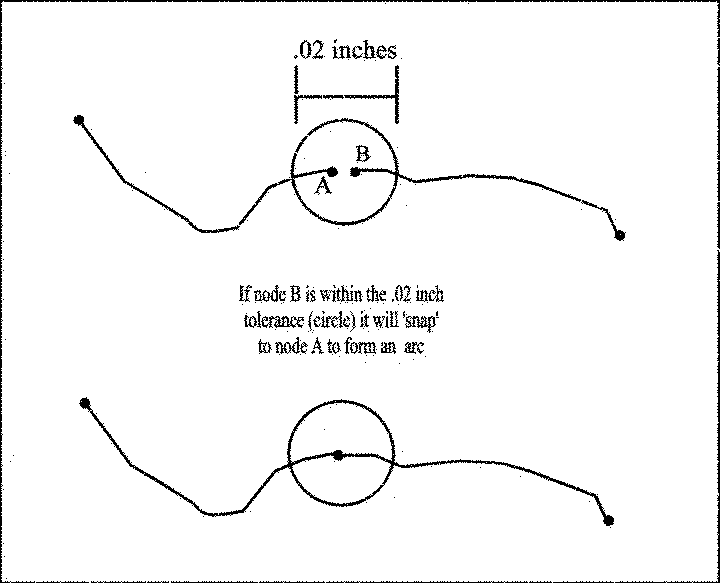

     Digitizing snapping tolerances of .02 inch were used on all primary data layers.  This tolerance refers to the beginning and ending points of arcs (lines) where they join at a node. Figure 7 shows an example of digitizing tolerances.
    Care must be taken to locate the tics as accurately as possible.  Accurate tic locations are especially critical when  re-entering tic  coordinates at the start of each digitizing session.  The ARC/INFO ADS calculates the root mean square (RMS) error whenever tics need to be re-registered.  The RMS error  represents the amount of error between original and new coordinate coordinate locations.  The lower the RMS error, the more accurate the digitizing or transformation.   All primary data layers were within .004 inches of RMS error.
     When digitizing was complete procedures were used so the topology among digitized objects was established for all data layers.  Topology is defined as the spatial relationships between connecting or adjacent coverage features , e.g. arcs, nodes, polygons, and points (ESRI 1995).  The tics of the QHSP boundary coverage were extracted into a ‘dummy' coverage using [CREATE].  Real-world coordinates in degree decimal format were input in [TABLES] to update the tic locations.  These coordinates were obtained with the Garmin GPS unit (Section 5.2).  The ‘dummy' coverage in degree decimal (geographic) coordinates  was then projected into  UTM meters.  Using the [TRANSFORM] command in ARC/INFO, the coordinates in inches in each coverage were converted into UTM projected coverages.

5.4  Acquisition and Conversion of  Portage and Stark County Data
     The acquisition of secondary data and subsequent conversion procedures were significant tasks in the creation of the GIS database for Quail Hollow State  Park.  Some of the most extensive problems occurred with the land value and ownership data needed for the habitat acquisition analysis.  The north property line of the park rests on the political division between Portage County to the north and Stark County to the south  (the entire park area is in Stark County).  However, the habitat acquisition analysis required some delineation of a delimited study area with proximity to the park.  A buffer study area (BSA) was established around the park boundary  using the [BUFFER] command in ARC/INFO (as described in Figure 3).  Parcels considered for  acquisition within this buffer area (named QHBUF) were selected based on selection criteria of  land use and land cover data from both Stark and  Portage Counties.
     This brings up the interesting and often frustrating problem of the lack of consistency of data format between different government agencies.  The land use data for Portage County were acquired from the county  auditor's office. The attribute data for parcels in the buffer area were acquired in DBASE format from the Portage County Data Processing Center.  The property boundaries for Portage County were only available in paper map copies and had to be purchased from the Portage County Tax Map Department.

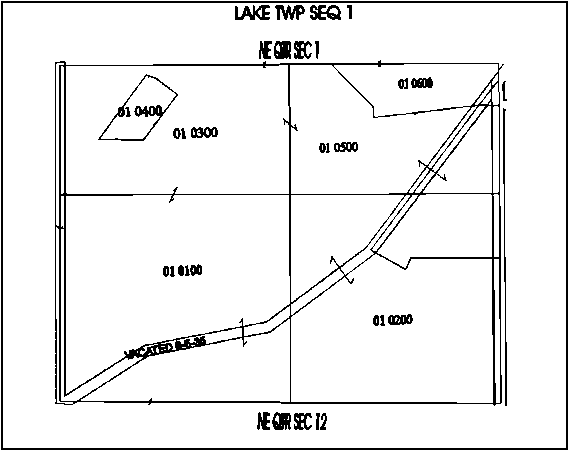

     Stark County data  obtained from the county auditor's office were in somewhat reverse formats.  Property boundaries were in DXF (Drawing eXchange Format) converted from CAD (Computer Aided Design) software.  CAD software can be used to create vector  (line) drawings with symbols and text and is often used in engineering applications to plan road construction and property maps  (Montgomery and Schuch 1993).  CAD drawings do not represent  a ‘topology' or specific geographic relationship of features and  objects to one another as a GIS package does.
    CAD data and GIS data are fundamentally different in that CAD data have one attribute per layer while GIS data may have multiple attributes associated with a layer. The DXF format is an export format that ARC/INFO can translate into a topological coverage.  Each DXF file contained a quarter section  based on the Public Land Survey System (PLSS) (Huxhold 1991).  Figure 8 shows a typical CAD drawing containing layers of property boundaries, parcel numbers and other descriptive information.
     Accuracy of the data from both Portage and Stark counties was questionable.  The Stark County data had land values for the period between 1989 and 1994.  Land values tend to fluctuate with market value.  Communication with both county governments suggest the land values were actual (total) value rather then tax value.  The conversion  process continued until the data could be visualized and interpreted for accuracy and reliability.

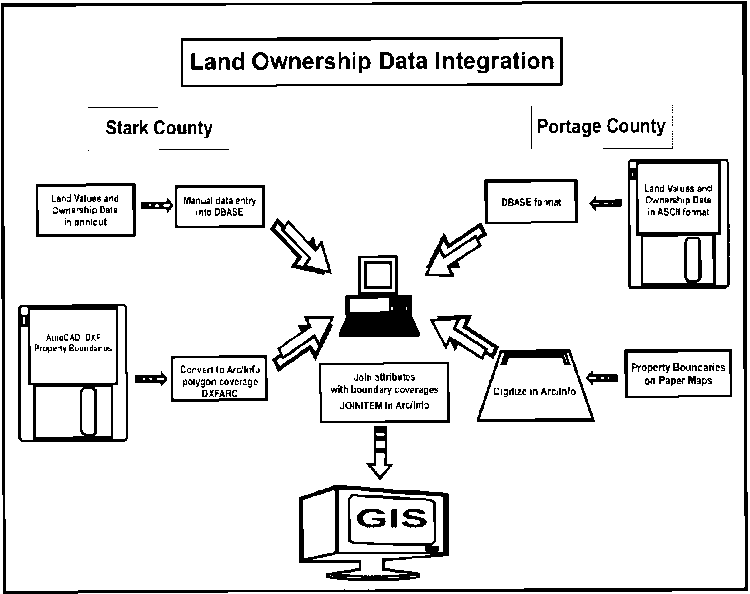

     Conversion  of CAD DXF files into ARC/INFO is a two-step process.  To determine the type of data storage (i.e. lines or annotation/text) the command [DXFINFO] is first used.  This extracts from  DXF files what information can be processed by ARC/INFO.  While this is useful information there is an another way to visualize the CAD layers.  The DXF files can be imported into CORELDRAW software.  Both techniques were used in this study to confirm property boundaries and parcel numbers.
     The command [DXFARC] was used to convert DXF files to create an ARC/INFO line coverage. This coverage was brought into ARCEDIT where the polygon labels were reassigned to provide ‘links' to the attribute files  previously entered into DBASE.  The label points of each polygon are stored as a feature-id in the .PAT (polygon attribute table) or .AAT (arc attribute table) data files in the resulting ARC/INFO coverages.  Therefore, they may  be used to identify each polygon or arc by their identification attributes. For example, in the Stark County  parcels coverage which was named STARK, the feature identification in the .PAT would be STARK-ID.   In ARC/INFO, these identical identifier items were  linked or joined with the command [JOINITEM].  All subsequent queries of a polygon (or arc) contained all attributes from the DBASE database.
    The Portage County ownership parcel maps were digitized using PC ARC/INFO and then converted to workstation ARC/INFO via the export/import function to take advantage of the faster processing speeds on UNIX platforms.  The Portage  and Stark parcels  coverages were assembled into two separate coverages using [MAPJOIN].  These were named PORTAGE and STARK respectively.  The Portage coverage contained 120 polygons (parcels) and the Stark coverage contained over 300 parcels.  Finally, the attribute information from each county database was linked to the coverages using [JOINITEM] as explained above.
     While this conversion was very time-consuming, it was necessary to obtain the land use  data.  The STARK and PORTAGE coverages were then delimited to the buffer area using the [CLIP] function in ARC/INFO.   Parameters for the [CLIP] command are the coverage to use as a ‘cookie-cutter' (the buffer QHBUF coverage) and the coverage to be clipped (STARK and PORTAGE coverages).  The resulting coverages (STARKBUF and PORTBUF) contain polygons and their attributes of  land use and land value for the  study area.  Figure 9  shows the land ownership data integration process. These coverages were later intersected with the ODNR wetland habitat  coverages (described in section 5.7.1)  to produce a comprehensive GIS database for the habitat acquisition modeling.
     The land value information was questionable as to whether it pertained to assessed land value or actual land value.  Land values tend to fluctuate with current market value.  It is not reasonable to assume that the land values from 1988 to 1994 data would be current values.  Land value would have to be determined at the time of acquistion or contractual agreements.  However, it is expected that the relationship between land values among available parcels will remain steady over time.  Once conversion was complete the data was displayed in ARCVIEW to visualize the land value information.  Values of land appeared to be assessed values.  Therefore, the land value information was not considered in the acquisition model or other analyses.
     The data conversion procedures were especially time-consuming due to the conflicting formats of the data from the two county governments.  Many government agencies are beginning to use ARC/INFO as the bridging format for land parcel information.  It is likely in the future that more agencies will be able to provide data in ARC/INFO format, thus eliminating the time factor  (and cost in real-world applications)  in data conversion.
5.5  Digital Elevation Model (DEM)
     A digital elevation model (DEM) was constructed as a visual tool for surface representation and modeling.  The DEM was also necessary for the proper registration and rectification for the ODNR aerial photography (see Section 5.6.2).
     A paper map of  two-foot elevation contours was obtained from the Stark County Engineer's Department (scale 1" = 200', created 1970).  Elevation in the park  ranges from 1130 feet to 1220 feet.  While this map had no available accuracy documentation it was used for three reasons.   First, it was a readily available source (the map was provided free by Stark County).  Secondly, the map's large scale (1:200) enabled contour lines to be digitized with better accuracy.  Finally,  the USGS 250,000 DEM covering the park area contained ‘striping' areas with large gaps of missing data in the geographic are of the park and BSA. Figure 10 shows the large number  of scanning errors.  It was unfortunate that the USGS DEM data could not be processed for this study.  The USGS DEM data would have provided an easy source for Z values (altitude) and visualization of topography in the entire BSA.
     The Stark County  map was digitized in ARC/INFO ADS (arc digitizing system) using digitizing snapping tolerances of .02 inch (refer back to Figure 6).  Each contour was marked with a unique color pencil prior to digitizing.  The elevation of similar contours was assigned to the arc user-id. Arcs with similar id numbers were calculated as spot height elevations for input to ARC/INFO [TOPOGRID] module.  TOPOGRID is an interactive module in workstation ARC/INFO that creates highly detailed DEMs from many different source inputs.
 There are two requirements for the TOPOGRID funtion to create a DEM.  First, a [BOUNDARY] coverage must be available.  This can be any coverage that is representative of the area from which the DEM will be interpolated.  The only other requirement for TOPOGRID is the [CONTOUR] coverage and the item identifying the spot height for each line contour.  This was the digitized coverage from the Stark County Engineer's map.
  In addition to the spot height parameter in TOPOGRID, the program also allows for concurrent input of a drainage line coverage.  This coverage helps enforce proper drainages and sinks (low areas) in the DEM creation process for more accurate terrain representation.  This option was used in the TOPOGRID input.  The [DRAINAGE] coverage contained  the streams within the park  digitized from the Stark County Engineer map.
 The resulting DEM is a grid (lattice) that can be displayed  in two-dimensional form  or as a three-dimensional surface.  The [HILLSHADE] command in ARC/INFO was used to provide  shading of the topography.  In addition, increasing the Z factor (height of elevation points) by a factor of 1.5 helped enhance the minimal topography changes within  QHSP.

5.6.1  Aerial Photography - First Attempt
      A color aerial photo of the entire park was incorporated into the GIS as a visual representation of the immediate park area and the adjacent land patterns.  The photo was rasterized by scanning on a Microtek Scanmaker IIHR color scanner.   The original photo dimensions were 24" by 18".  Since the scanner used was only able to accommodate 8"x10" at a time, the photo had to be scanned in 9 separate sections.  Each image was acquired through the use of Micrografx Picture Publisher (Micrografx,Inc. Richardson, Texas) software running on a 100mhz Pentium PC with 16 MB RAM.

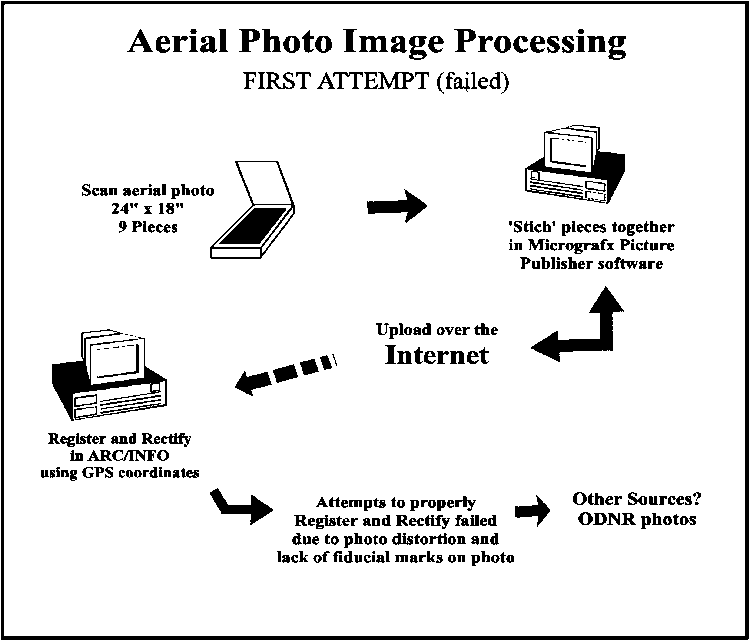

     Figure 11 details the steps in the attempt to register the color aerial photo.   As each image was acquired it was "stitched" (Micrografx,Inc. Richardson, Texas) to the previous image.  This stitching function involved the matching of two distinct points on each image.  Melding of the raster pixels was based on these two point locations.  Average file size of each image ‘piece' was 1.5 megabytes (MB) at a resolution of 150 dpi (dots per inch). The final image size was 10.8MB.
     Once the image was assembled, it was necessary to upload or send the image via FTP (file transfer protocol) to the UNIX based workstation for further processing into ARC/INFO format. The UNIX workstations utilized for this study were Hewlett Packard Apollo 9000 model 730 running as a server at Kent State University Department of Geography, Kent, Ohio.  Download time was 1.5 hours at 14,400 bps (with current higher speed modems of 28800-55600 bps the download time would be  reduced dramatically) .
     The Image Integrator module of ARC/INFO was used for the attempt at integration of the photo into the GIS.   The Image Integrator allows for registration of image files to real-world coordinates.  Coordinates are ‘linked' to image points by either  manual entry or to points on an ARC/INFO polygon coverage.  Once the image is registered, it is warped to fit coordinates using either [RECTIFY] in ARC/INFO or [MAPWARP] in ARCPLOT.  There  was a problem in this conversion in that the photo would not register correctly with the digitized park survey boundary.  The boundary survey was used in the attempt to register the
photo because it was already registered to GPS coordinates.  The registration difficulty  was due to two factors 1) the  distortion in  the aerial photo image; and 2) lack of  fiducials for location of the central point of the photo (see Literature Review section  3.3).  Distortion problems existed in the original photography and further distortion may have occurred in the joining of the multiple scanned images.
5.6.2  Aerial Photography from ODNR - Second Attempt

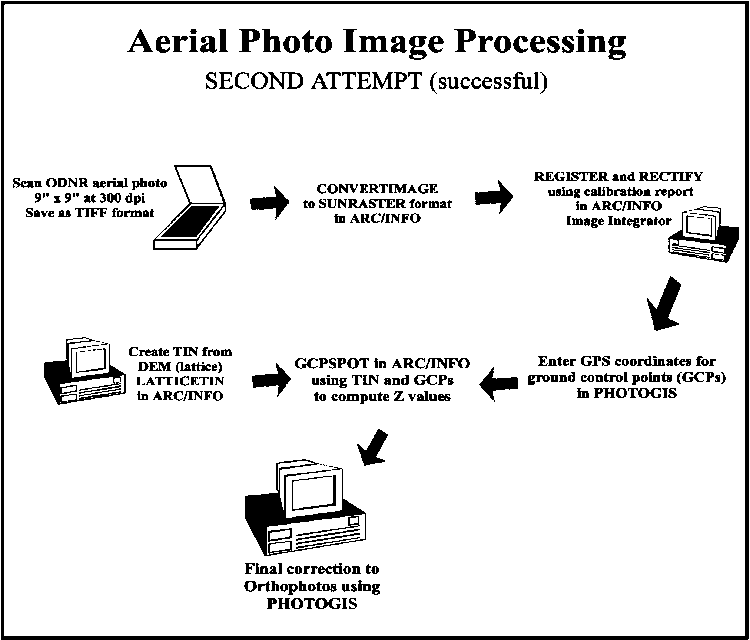

     With the failure of the registration process of the QHSP color aerial photo, it was necessary to obtain aerial photography from another source.  A request for photos was made to the ODNR Earth Science Information Center (ESIC) in Columbus, Ohio.   Black and white (B&W) photos were ordered from ODNR covering QHSP  and the BSA.   The flight dates of  the photos were  4-19-95 (scale = 1:12000)  and 4-16-85 (scale = 1:24000).  The ordering process required 6 weeks and the photographs were a significant cost to the project.  The registration of the B&W photos began in a similar fashion to the process for the color photo (see Figure 12).  The 1995 and 1985 photos were scanned on a 10" X 10" flatbed scanner at a resolution of  300 dpi using ADOBE PHOTOSHOP software.  The image file was saved in Tag Image File Format (TIFF) and then converted into SUNRASTER format using ARC/INFO [CONVERTIMAGE].  TIFF format is used in desktop publishing applications.  SUNRASTER format is a specific image format for Sun Microsystems operating system.
     The conversion was necessary because the orthophoto conversion software required SUNRASTER image format.  The resulting binary file of just one 9" X 9" B&W photo was approximately 7.5 MB.  The 1985 photo at 1:24000 scale covered the entire BSA.  There were 4 different photos scanned in the 1995 series at 1:12000 scale.
    After correction and joining of the 1995 photos, it was discovered that the BSA was not entirely represented.  Due to time constraints and budget limitations, the additional 1995 photos were not ordered.  Additional photos to complete the BSA would have required another 3-4 weeks.  The 1995 photo was used for detail maps of QHSP and the 1985 photo series was used for the BSA maps and the Habitat Acquisition Model (HAM).

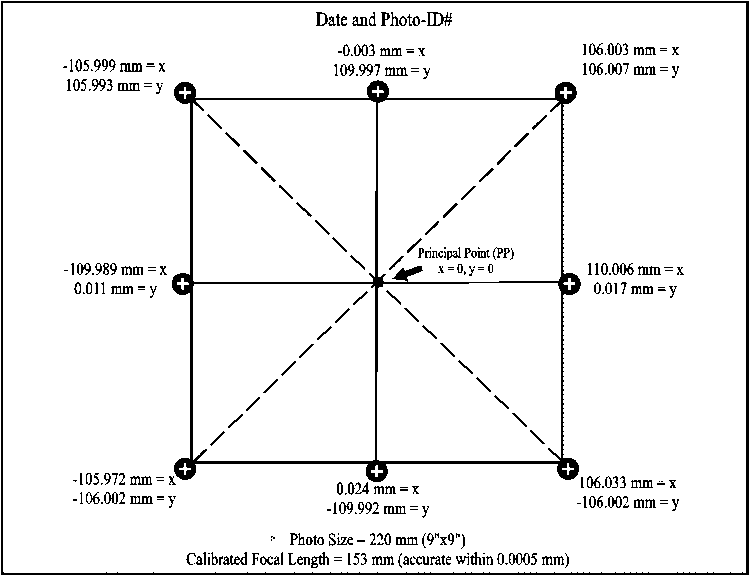

     A major advantage in the processing of the ODNR photos was the presence of  fiducial marks.  Fiducial marks define the photo coordinate axes (refer to Literature Review Section 3.3).  A line drawn from northwest to southeast fiducials intersects a line drawn  from  northeast to southwest fiducials.  The central point where these lines intersect is the principal point which serves as the ‘anchor' point for x,y, and z  corrections in the photo.  Each fiducial mark must be referenced to a coordinate obtained from a camera calibration  report.  The ODNR could not provide the calibration report.  Camera models can be determined by the type and locations of fiducial marks (Oregon State University 1994) it was determined that the camera used was a Wild RC10, a common camera used in aerial photography.  The calibration report used for the fiducial coordinates was obtained from the USGS in Reston, VA (U.S. Geological Survey 1992) (see Figure 5, Section 3.3).
     The fiducial coordinates were entered into a text file.  The text file was used with the ARC/INFO [GENERATE] command to create a coverage of the fiducial coordinates (PHOTCOV).  The scanned aerial photo image was entered into the ARC/INFO Image Integrator module using the [REGISTER] command.  The  PHOTOCOV coverage of calibration coordinates was used as a tic cover to link to  the fiducial marks on the photo. Registration  accuracy (RMS error) was computed by ARC/INFO to be less than .001 mm. The registered photo was rectified using ARC/INFO [RECTIFY] command.
    ORTHO-PHOTOGIS (GBS Tasmania, Australia)  image  processing software was used for the conversion  of the rectified photo into a digitally corrected orthophoto.  ORTHO-PHOTOGIS is an independent program that functions  within ARC/INFO.  Using the GPCEDIT module of  ORTHO-PHOTOGIS, the GPS coordinates obtained earlier (Section  5.2) were used to reference known point locations, such as road intersections, that were clearly visible on the image.
     The digital elevation model (DEM) created in the previous section  was important  in the conversion of the aerial photos to digital orthophotos.  The DEM contained x,y and z values in a grid format, i.e. a lattice of point coordinates. ARC/INFO uses the words GRID and LATTICE interchangeably. They are essentially the same.
     ORTHO-PHOTOGIS requires a triangular irregular network (TIN) for the final ortho correction.  A TIN is a digital surface model that estimates a terrain surface with a set of triangular facets (Lee 1991).  The DEM grid was converted to a TIN using the [LATTICETIN] command in ARC/INFO.  This ORTHO-PHOTOGIS  uses the  TIN and the x,y coordintes from the previous established ground control point  (GCP) file to calculate  x,y,z  values for the entire photo area.
 The final program entry  necessary to complete the transformation of the photo into a digital orthophoto was the focal length  of  the camera which was calculated at 152.95 mm (U.S. Geological Survey 1992).   The ORTHO-PHOTOGIS computed the accuracy of the orthophoto correction at  +- 5 meters.
     The completed 1:24,000 scale 1985 orthophoto was easy to clip to the BSA  since the BSA was entirely within the photo boundaries.  The 1:12,000 1995 orthophotos required a number of steps to merge them into the final image.  In both circumstances, the finished orthophoto(s) were converted to grids using ARC/INFO [IMAGEGRID].  Each grid (lattice) was resampled to the same cell size of  1 meter.  [LATTICEMERGE] combined the four 1995 photos into one photo mosaic.  [LATTICECLIP] was used to clip the photos to the BSA or the QHSP  boundary area.  Finally, the merged grids were converted back to images using [GRIDIMAGE] and the SUNRASTER format option.  The SUNRASTER image format is accepted by ARCVIEW for displaying images.

5.7.1 Wetland Habitats from ODNR Division of Wildlife

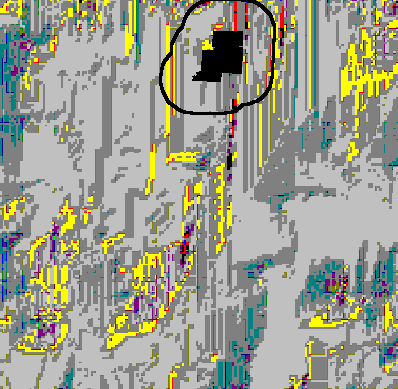

     Secondary data of  wetland/habitat types for Stark and Portage counties were obtained from the ODNR Division of  Wildlife.  The data were pre-processed  by  ODNR from satellite imagery  using ERDAS (ERDAS Inc. Atlanta, Georgia)  image-processing  software.  ERDAS  is a raster and vector  GIS package which is used for processing of  raster  data  into a useable GIS format.  The ODNR data layers contained 44 items  related to wetland habitat as well as political boundaries, such as roads, lakes and rivers and non-classified areas.  Wetland classifications are based on Anderson, et al. (1976) and Shaw and Fredine (1956).  The first 29 data attributes were non-classification values.  The remaining 15 data  attributes available were classified as shown in Table 2.  The files were downloaded from the ODNR ftp site  The ERDAS image files were received in binary (raster) format and registered in UTM coordinates.  The classification values were assigned to individual pixels (cells).  A number of conversion steps had to be accomplished before the coverage could be useful in  the  GIS.
     First, the images were converted into GRID format in  ARC/INFO using the command [IMAGEGRID].  Then, the [GRIDPOLY] command was used to convert the GRID cell  format into a vector format.  This conversion to a polygon coverage was necessary so that they could be overlayed later (using [INTERSECT]) with the STARKBUF and PORTBUF land parcel coverages for the habitat acquistion model.  While this was necessary, it was not preferable since raster to vector data conversion usually results in some loss of clarity.  The conversion from raster (cells) to vector (lines)  results in a ‘blockiness'. This is especially noticeable in the roads or rivers which are usually delineated as lines.  Parcels or polygons are less noticeable because a polygon has a square area which is well-represented by the square ‘areas' of the raster cells.

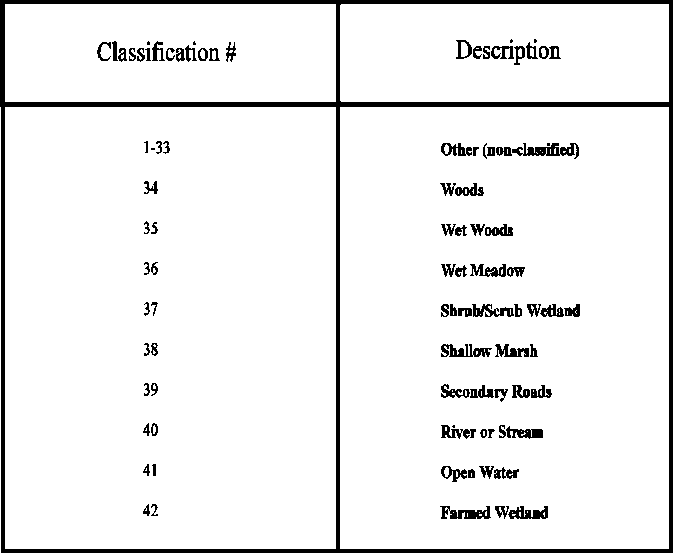

     After being converted to a polygon coverage, the wetland classifications were listed in an item called GRID-CODE.  For clarification, a new item was added to the polygon attribute table (PAT) called ODNR-CODE.  The values for GRID-CODE were assigned to ODNR-CODE using the [TABLES] (INFO) command [CALCULATE].  To assign descriptions to link to the ODNR-CODE,  another item ODNRLU was created.  A [RESELECT] of each ODNR-CODE value was then related to the ODNRLU landcover descriptions using the  [TABLES] command: e.g. MOVE ‘WET WOODS' to ODNRLU.  Later this coverage was intersected with the agricultural land use coverage.  The intersected polygons then contained both attributes of wetland habitats and also agricultural landuse.

5.7.2  Natural Heritage Data for Endangered Plant Species
     Natural Heritage data of endangered plant species in Ohio were obtained from ODNR Division of Natural Areas and Preserves (DNAP).  Natural Heritage programs have been established throughout  all  50 states.  Natural Heritage programs collect, manage and use biological, ecological and related information in cooperation with various state agencies. The criteria for Natural Heritage data are based primarily on the goal of protecting biological and ecological diversity.
 The data format was a text file of  61 endangered plant species locations in the geographic area near Quail Hollow State Park.  An example of the text file attributes is shown in Table 3.
    The comma-separated data describe geographic and descriptive  point locations for plant species.   A number of steps were necessary to convert the text entries into a useable ARC/INFO point coverage .  The first two entries are latitude and longitude in degrees, minutes, and seconds (DMS).
     An easy conversion solution was to import the textfile into a spreadsheet program. Quattro Pro ver. 6.0 (Corel Corp.  Salinas, California) spreadsheet program was used but any other spreadsheet program would suffice.  Cell conversion was quite simple with each data entry contained in a spreadsheet.  The unnecessary ‘N's, ‘W's and ‘0's  in  the latitude/longitude coordinates were  deleted using global search and replace.  Conversion of  DMS lat/long to DD was accomplished by entering a formula, (Decimal degrees = Degrees + Minutes/60 + Seconds/3600) and copying it to each cell.   Longitude was multiplied by -1 to calculate degrees west of the prime meridian.  The latitude column was  cut and pasted in order after the longitude column.  An identification number field as added to precede longitude and numbers entered from 1 to 61.
     Conversion into the ARC/INFO point coverage was completed using the [GENERATE] command.  The coverage was projected into UTM.

5.8.  DLGs from the USGS
     Digital line graph (DLG) data (scale 1:250,000)  was downloaded from the USGS ftp site ftp  Roads, railroads, and hydrography files were downloaded in binary compressed format for canton-e (Stark County) and cleveland-e   (Portage County).  Most of the USGS data such as the DLGs and DEMs are very large files (often in excess of 10 megabytes) and require  pre-processing before they can be used in ARC/INFO (UNIX is the preferred operating system environment).  An unblocking command sequence is used to reorder the data into an ASCII block configuration.  An example syntax for the USGS DEMs at UNIX prompt  is dd if=<filename> of=<new filename> ibs=8000 cbs=1024 conv=unblock.   For specific unblocking instructions there are README files in the directories for each category of data (i.e. DLG, DEM, LULC, etc.).
     The  files were brought into ARC/INFO using the command [DLGARC].  Once the ARC/INFO coverage is established, the file must be projected into the appropriate datum.  All coverages for this study were projected in UTM (Universal Transverse Mercator) using the ARC/INFO parameters for the [PROJECT] command.  The resulting coverages from the DLGs were roads, railroads and hydrography.   These covers were used as overlays with a number of maps to define relative location and reference for the transportation and hydrography in the BSA.

5.9  Methodology Summary
     Throughout this chapter on methodology,  descriptions of the numerous data manipulations and conversions have displayed the complexity of compiling the GIS database.  Obtaining the files and data and the lengthy time factor in conversion are the ‘basic' steps in making data useable for input into the ARC/INFO GIS.  The time factor translates into significant costs for data conversion.  In addition, there was substanial cost incurred for data that proved to be unreliable and unusable. There are many secondary data sources available from government agencies.  Sources used in this research were the ODNR ERDAS images from Division of Wildlife, the ODNR DNAP Natural Heritage Data, and the DLGs from the USGS.   Data sources, such as the digitized contours from the Stark County engineer map, were used to create the DEM.
     Aerial photography is a useful tool for reference of a study area and delineation of habitats and GPS coordinate locations.  The time to scan, register and rectify aerial photography is very extensive, again translating into amplified costs for a project.  Distortion in an aerial photograph may render it unusable for the overlay of geographically referenced data.  However, an aerial photograph can also be used as a single data source identifying land use and other geographic relationships in a region.
     The spatial analysis functions such as buffering and intersecting are useful for limiting an area of study and allowing queries of attributes from different data sets.  The following chapters demonstrate the results of  the data conversions and habitat acquisition analysis applying  spatial  overlays and queries using ARCVIEW GIS software.
